OBD2 Scanners Your Ultimate Car Diagnostic Tool

Description

Introduction to OBD2 Scanners: What They Are and How They Work

On-Board Diagnostics, commonly referred to as OBD, is an automotive term referring to a vehicle’s self-diagnostic and reporting capabilities. Introduced in the 1980s, the OBD system has undergone significant advancements, leading to the modern OBD2 (On-Board Diagnostics II) standard implemented in most vehicles from 1996 onwards. OBD2 scanners are crucial tools in automotive diagnostics, enabling users to access vital information about a vehicle’s health and performance.

The primary purpose of an OBD2 scanner is to interface with the vehicle’s OBD system to retrieve diagnostic trouble codes (DTCs) and other pertinent data. These diagnostic codes are a form of encrypted communication between the vehicle’s systems and the user, pinpointing issues ranging from engine malfunctions to transmission problems. Additionally, OBD2 scanners can monitor real-time sensor data, making it possible to observe parameters such as engine RPM, fuel efficiency, and coolant temperature.

Furthermore, OBD2 scanners play a fundamental role in everyday vehicle maintenance and repair. By offering insights into a car’s internal systems, these scanners help in identifying problems without the need to dismantle any parts. This capability not only saves time but also minimizes risks associated with intrusive diagnostics. Advanced models of OBD2 scanners employ features like freeze frame data and readiness monitors to give a more comprehensive analysis of the vehicle’s condition.

Both DIY enthusiasts and professional mechanics can significantly benefit from using OBD2 scanners. For hobbyists and car owners, these tools provide a means to troubleshoot minor issues and perform routine maintenance without professional help. Meanwhile, professional mechanics leverage OBD2 scanners to conduct intricate diagnostics, facilitating more accurate and efficient repairs. In essence, OBD2 scanners democratize car diagnostics, making vital vehicle health information accessible to a broader audience.

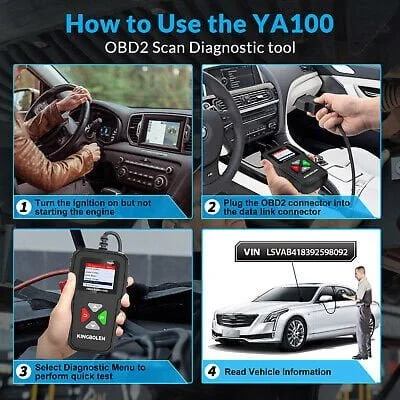

Using an OBD2 Scanner: A Step-by-Step Guide

Employing an OBD2 scanner to diagnose car issues is a straightforward process, but understanding each step is crucial to ensuring accurate results. Begin by locating your vehicle’s OBD2 port, typically found beneath the dashboard near the steering column. Once you have identified the port, connect your OBD2 scanner and power it on. Most scanners are designed to draw power directly from the car, but some models may require batteries.

With the scanner connected and powered, the next step involves reading Diagnostic Trouble Codes (DTCs). These codes are stored by your car’s computer and provide insights into potential problems. To retrieve DTCs, enter the menu on your OBD2 scanner and select the option to read or scan for codes. You’ll see codes displayed on the screen, usually consisting of either five or six characters combining letters and numbers. Common codes such as P0300 indicate random/multiple cylinder misfires, while P0420 pertains to catalytic converter efficiency below the threshold.

Interpreting these codes is essential for accurate diagnostics. Most OBD2 scanners come with a code library feature or reference guide, providing descriptions for each code. In cases where an issue like a misfire (P0300) or catalytic converter problem (P0420) is detected, the scanner may also provide additional data or “freeze frame” information, helping you understand the context of the issue. Refer to your vehicle’s repair manual or consult a professional for a thorough interpretation of these codes.

With your DTCs identified, relating them to specific car troubles is the next step. For instance, if you encounter engine-related codes such as P0300, inspect spark plugs, ignition coils, and fuel injectors. Transmission-related codes like P0700 suggest checking the transmission fluid and electrical connections. Emissions-related codes such as P0420 necessitate examining the catalytic converter and oxygen sensors.

After diagnosing the issues, you may opt to clear fault codes. It’s essential to only clear codes once the problem has been resolved; clearing codes prematurely can mask ongoing issues and impede effective troubleshooting. Most OBD2 scanners feature a “clear codes” option for this purpose.

Conducting regular maintenance scans can preemptively identify and address minor issues before they escalate into costly repairs. Keeping an OBD2 scanner in your vehicle is highly beneficial, offering continuous diagnostics, enhancing your driving experience, and providing peace of mind.

Automotive OBD2 Scanner OBD Code Reader Car Check Engine Fault Diagnostic Tool

KINGBOLEN YA001 Car obd2 Scanner OBDII Function For Check Engine, Read and Clear Fault Code, Battery Test, EOBD OBDII Diagnostic Scan Tool for Most 1996 & Newer Cars

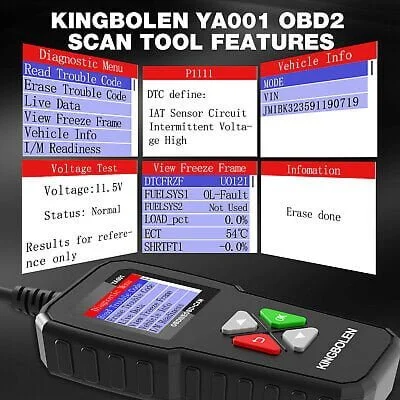

KINGBOLEN YA001 is a Holder code reader with a part of OBD2 Functions Read/Clear DTCs, I/M Readiness Check, Live Data Stream Viewing, Freeze Frame Data Viewing, Vehicle Information Retrieval along with advanced DTC Lookup function.

[Key Reasons To Buy YA001]

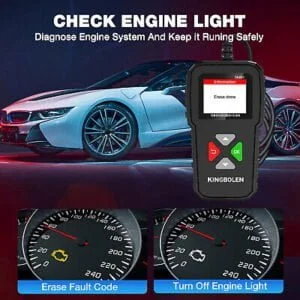

• Check Engine Light/Turn off MIL(Malfunction Indicator Light)
• Help to Pass Vehicle Safety Inspection and Emissions Inspection
• A part of OBDII Diagnostic Functions
• Battery Test
• 8 Languages supported and Extensive Vehicle Coverage

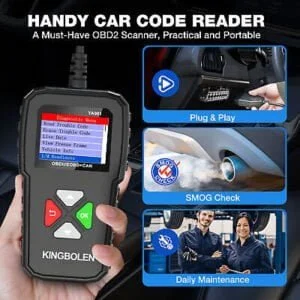

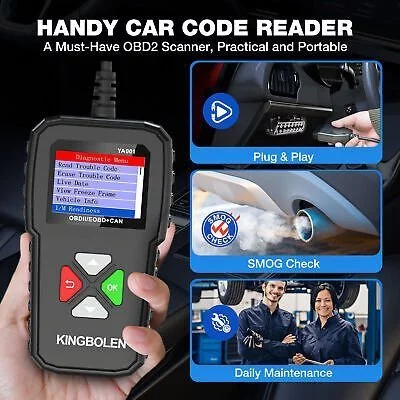

• Easy to use : Just plug and play, no batteries are needed.

8 Kinds of Languages supported

English, French, Russian, German, Italian, Portuguese, Polish.

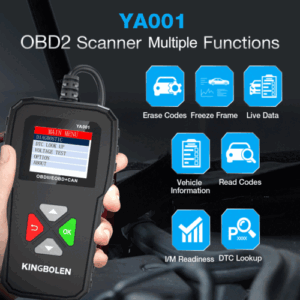

KINGBOLEN YA001 support a part of OBD2 Function

1. Reading Codes

Show the detailed description of the Diagnostic Trouble Code (DTCs)

2. Erasing Codes & Reset

Turns off Check Engine Light (MIL), clears codes and resets monitors.

3. Data Stream

Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4. I/M Readiness Status:

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5. Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

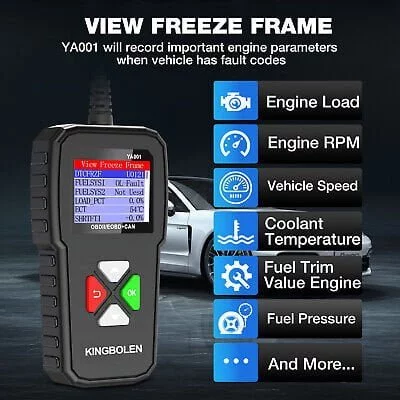

6. View Freeze Frame Data

Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7. Read Vehicle Information

Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

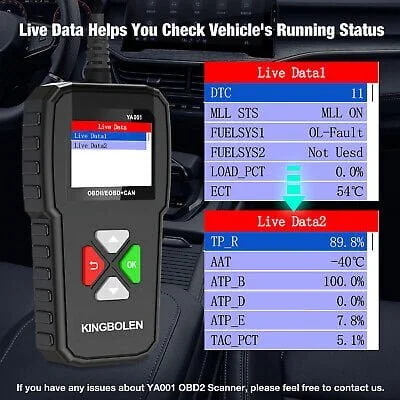

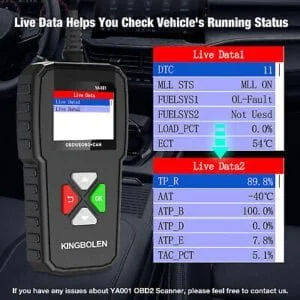

Accurate Real-time Data Flow, supports Graphical Recording and Playback

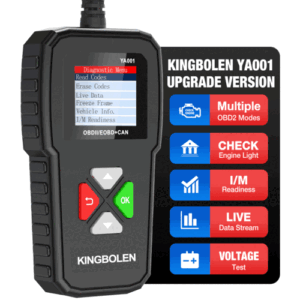

KINGBOLEN YA001 support Real-time Voltage Test

It can display the voltage of OBD diagnostic socket and the status after evaluation. It mainly feeds back the current voltage condition of the diagnostic socket or the battery condition.

* If the voltage of the battery is lower than 12V, it is recommended to go to the professional tester to diagnose the current battery condition.

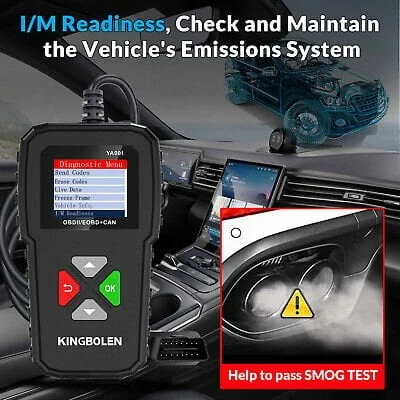

I/M Readiness

Check that the vehicle’s emissions system is functioning properly

One-click design makes diagnosis easier and faster

1. One-click I/M Readiness:

Just click a button to query I/M Readiness

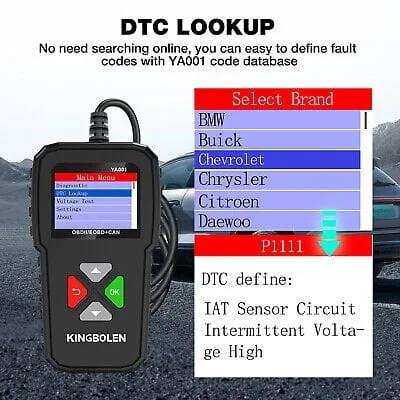

2. One-click DTC

Looks up definitions of Pending Codes stored in the scan tool and shows the possible causes of the DTC (Not every DTC with possible causes reason).

KINGBOLEN YA001 Code Reader meets the following protocols

1. SAE J1850 PWM (41.6 Kbaud)

2. SAE J1850 VPW (10.4 Kbaud)

3. ISO 9141-2 (5 baud init, 10.4 Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

KINGBOLEN YA001 support 10,000 + car models

Compatible with Standard OBD2 Cars from 1996 to Now:

For Chrysler, for Ford, for GM, for Jeep…

European car:

Compatible with Standard OBD2 Cars from 2003 to Now:

For Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Volvo, for VW, for Ford, for Jaguar…

France Car after 2006:

for Citroen, for Fiat, for Renault, for Peugeot

Not Support for Renault Clio 2/Megane/Dacia Logan..

Asian car

Compatible with Standard OBD2 Cars from 2007 to Now:

for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai, for Dacia, for Lexus, for Mazda, for Nissan, for Subaru, for Suzuki, for Toyota….

Chinese car:

Compatible with Standard OBD2 Cars from 2009 to Now:

for BYD, for Chery, for Geely, for Great Wall, for Karry…

Please note: KINGBOLEN YA001 is only for 12V 16PIN OBD2/EOBD Car engine diagnosis.

* Does not support Trucks, semi-trailers, dump trucks, tractors, hybrids, electric vehicles and other commercial vehicles.

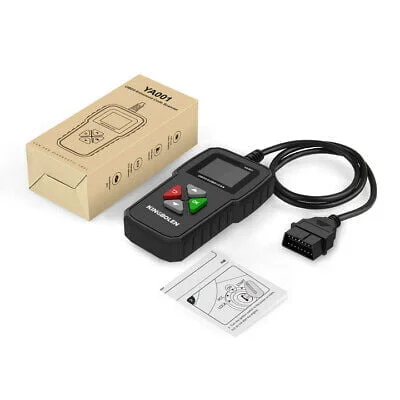

Packing List of KINGBOLEN YA001

1 * KINGBOLEN YA001 Code Reader

1 * User Manual

1 * Carton box
