Description
In the realm of automotive diagnostics, On-Board Diagnostics (OBD) systems, particularly the OBD2 scanners, have revolutionized the way vehicle issues are identified and rectified. The foundation of modern OBD2 technology can be traced back to the early 1980s when the first generation of OBD systems was introduced. Over time, these systems have evolved significantly, leading to the more sophisticated OBD2 technology mandated for all vehicles manufactured from 1996 onwards. OBD2 scanners are indispensable tools for both professional mechanics and DIY enthusiasts.
The primary function of an OBD2 scanner is to establish communication with a car’s On-Board Computer (OBC) to retrieve diagnostic trouble codes (DTCs). This process is made possible by a standardized 16-pin connector, usually located under the dashboard. When a vehicle’s Malfunction Indicator Lamp (MIL), commonly known as the “check engine light,” is triggered, an OBD2 scanner can be used to interpret the DTCs, providing insights into potential issues within the vehicle. These codes help identify problems ranging from minor glitches to severe malfunctions.
To understand OBD2 scanners fully, it is essential to grasp common terminologies. OBD stands for On-Board Diagnostics, a system that monitors the performance of various vehicle components. DTCs, or Diagnostic Trouble Codes, are alphanumeric codes generated by the OBC when a malfunction is detected. The MIL, or Malfunction Indicator Lamp, serves as a visual alert to drivers, indicating that a problem has occurred.
The market offers a variety of OBD2 scanners, each tailored to specific needs and budgets. Basic code readers provide simplicity and ease of use, making them ideal for beginners who need to scan and clear MIL codes. More advanced diagnostic tools, however, offer extended functionalities, including real-time data streaming, ABS and SRS diagnostics, and enhanced freeze frame data analysis. These sophisticated devices are designed for seasoned mechanics requiring comprehensive vehicle diagnostics.
In conclusion, OBD2 scanners are pivotal in modern vehicular diagnostics, offering a seamless connection to a car’s internal systems. They empower users with the ability to diagnose and address issues efficiently, ensuring vehicle longevity and performance.
“`
Using an OBD2 Scanner: Step-by-Step Guide and Best Practices
Using an OBD2 scanner effectively can save time and money by providing immediate insights into your vehicle’s health. Here is a detailed step-by-step guide to help you diagnose car issues efficiently.

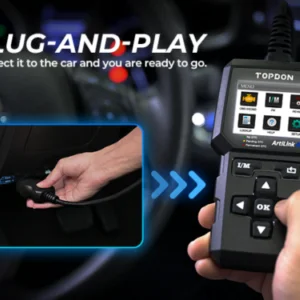

Firstly, locate the OBD2 port in your vehicle. This port is typically found under the dashboard, near the driver’s side. To ensure safety, turn off the vehicle before connecting the scanner. Once identified, plug the OBD2 scanner into the port firmly to establish a secure connection.
Next, turn the vehicle’s ignition to the “on” position, but do not start the engine. This allows the OBD2 scanner to communicate with the car’s computer system. Power on the OBD2 scanner and follow the on-screen instructions to begin the scanning process. The scanner will then retrieve diagnostic trouble codes (DTCs) from the vehicle’s onboard system.
Once the scanning is complete, the scanner will display a series of codes. Each code corresponds to a specific issue. Refer to the OBD2 scanner’s manual or an online database to interpret these codes. Understanding what each code means is crucial for diagnosing and addressing the underlying problems effectively.
After interpreting the codes, take appropriate steps to resolve any identified issues. Once repairs are made, you can use the OBD2 scanner to clear the fault codes. This often involves a simple reset function available on most scanners, which erases the error codes from the vehicle’s computer system.
Best practices for using an OBD2 scanner include performing routine maintenance checks to preempt potential problems. Regularly scanning your vehicle can detect issues before they escalate. If you encounter persistent fault codes, despite troubleshooting, consult a professional technician, as this may indicate a more serious underlying problem.
Lastly, keep the scanner’s firmware updated for the latest code definitions and functionality, and always follow the manufacturer’s guidelines to avoid damage during use. Employing these best practices will ensure your OBD2 scanner remains an invaluable tool in maintaining your vehicle’s health.
Automotive OBD2 Scanner OBD Code Reader Car Check Engine Fault Diagnostic Tool
AL400 OBD2 Scanner, Full OBDII Code Reader, Check Engine Light Scan Tool, Car Scanner with DTC Lookup, Clear Codes, Freeze Frame, One-Click I/M, Diagnostic Scanner for DIYers, Lifetime Update
- 🚖【Code reader, Wide vehicle coverage, DTC Lookup】The TOPDON ArtiLink400 scan tool works for most 1996 and newer vehicles that follow ✅KWP2000, ✅ISO9141, ✅J1850 VPW, ✅J1850 PWM, and ✅CAN protocols, including passenger cars, light trucks, SUVs, etc. The simple design and easy-to-use features allow anyone to easily fix emission-related issues common in cars that are three or more years old. Its DTC library base helps users find DTCs definitions with ease.
- 🚖【Enhanced OBDII Diagnostic scanner】TOPDON AL400 Code Reader is the upgrade version of AL200/AL300. This OBD2 scanner comes with variety of OBD2 function, including reading & erasing DTCs, resetting monitors, live streaming in graphs/viewing freeze frame data, and many more features that would usually be found in an expensive diagnostic tool. Determine the cause of “Check Engine” lights/monitor the running components of the engine and use freeze-frame technology to focus on car’s trouble area.
- 🚖【Professional check engine scanner, 10 OBDII Functions】This code reader helps you run emission tests such as I/M readiness, EVAP, O2 sensor, catalyst monitor, misfire monitor, and many others. These tests not only help cars pass smog tests but also make cars more fuel-efficient, improving performance. The AL400 has a DTC code results menu with LED lights that can quickly identify vehicle’s health status. Red—permanent DTC, Yellow—pending DTC code, Green—no DTC fault code.
- 👍 【User-Oriented Diagnostic scanner, ✅Free lifetime updates】This scan tool is backed by the TOPDON promise for free lifetime updates to keep your software current. The 2.4′ color screen is bright enough to work in a dark garage or in sunlight. The buttons are arranged so you can easily navigate through the menus.
- 🚖【7 Languages supported, 24/7 customer support】This OBD2 scanner is multilingual, providing both menu and DTC definitions in seven different languages: English, French, German, Spanish, Portuguese, Japanese, and Italian, and has 12 months extended quality backup.
- For any issues you may have before or after the purchase, email us : support@topdon.com.
Product Description

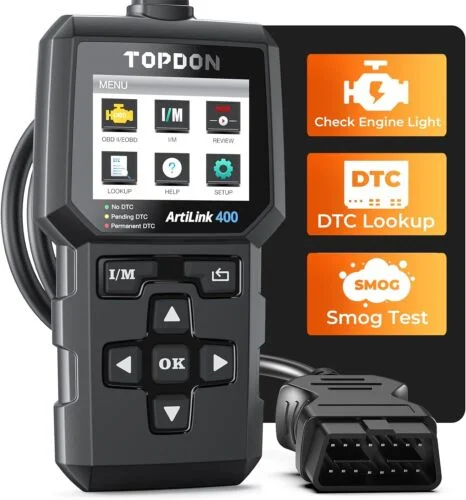

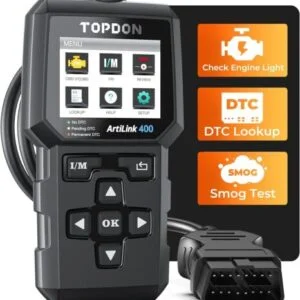

TOPDON ArtiLink 400 — A Quality Diagnostic OBD2 Scanner, Updated version of TOPDON AL200 and AL300
If you want a high-quality and budget-friendly OBD2 scanner equivalent to dealer-level diagnostic tools, TOPDON’s ArtiLink 400 is your ideal choice.
- More Compatibility: This is an essential diagnostic scanner made to solve most emission-related OBD2 issues for modern cars (1996 and newer). It is compatible with KWP2000, ISO9141, J1850 VPW, J1850 PWM, and CAN Protocols.
- Full OBD2 Test Capabilities: The AL400 Reads & Clears both generic and manufacturer-specific check engine light codes and reset monitor; Offers I/M readiness to test misfire, fuel system, and other components; Displays all data stream in graphics for easy analysis; Freezes frame data to check the snapshot of running status when an error occurs, and much more.
- Free Updates: Unlike other OBD2 code readers, the ArtiLink400 offers Free Lifetime Diagnostic Software Updates. This scan tool will save you money like no other.
- DTC Lookup Library: Designed for Diagnostic Trouble Codes (DTCs) detailed explanations.
- 3 Color LED Indicators: The ArtiLink 400 indicators report OBD2 test results immediately, allowing you to evaluate the vehicle’s health at a glance.
- Solid Design: Its rugged plastic housing can absorb the impact and prevent damage to the tool, saving you money in the long run and providing extra durability.
- User-Oriented: The AL400 includes well-laid-out buttons for an effortless operation, even when wearing gloves.
- Multilingual Menu: Have all the information you need in English, French, Spanish, German, Italian, Portuguese, and Japanese.

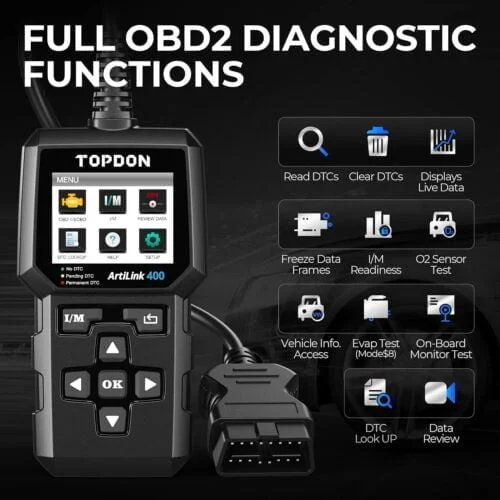

Full Modes of OBDII Test
TOPDON’s ArtiLink400 can quickly tell you the exact cause behind the check engine warning light. This fully-featured obd2 code reader can help solve emission issues and help pass the smog test for most 1996 and newer OBD2/CAN vehicles.
1.Reads Fault Codes associated with Check Engine Light on vehicle dashboards.
2.Clears Fault Codes, being able to turn off Check Engine Light after servicing and repairing.
3.Views Dynamic Live Data to show how the car is performing.

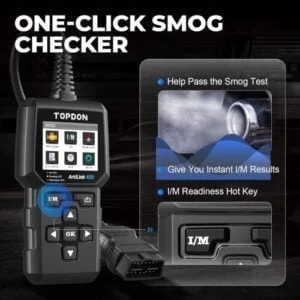

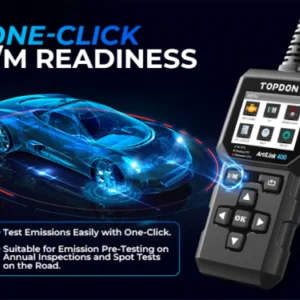

4.Displays I/M Readiness status to identify if the car is ready for the emissions test.
5.Shows Freeze Frame data to see what happened when the fault code was set.

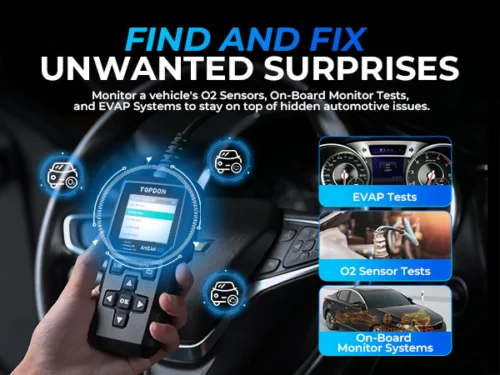

6.Its O2 Sensor Test checks fuel efficiency and emission status.
7.Performs EVAP Test for fuel tank system (carbon canister) test.
8.Access to on-board diagnostic monitoring test results to determine if some specific components or the monitors are normal.

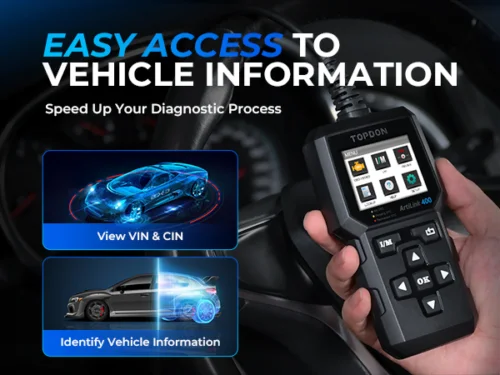

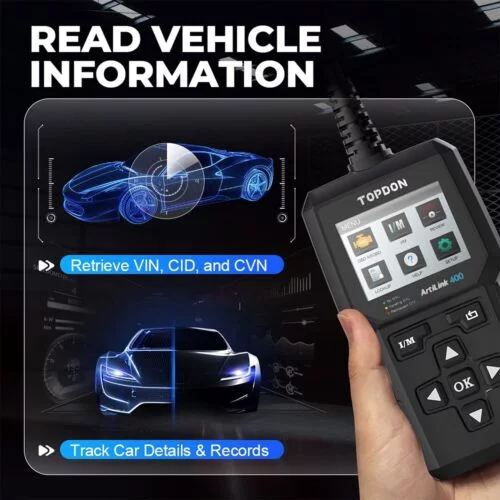

9.Retrieves vehicle information (VIN, CID, and CVN) to track the car’s details and historical records.
10.Offers a built-in DTC lookup library for generic (P0, P2, P3, and U0) and manufacturer-specific (P1, P3, and U1) codes. This function shows the definition of the DTC immediately, so you don’t have to search online.
Check Your Car’s Emission Issues
If your check engine light shows up, you don’t need to immediately or immediately take another costly trip to an automotive shop. Running diagnostics will be easy with this obd2 scan tool. It quickly tests every emission-related module status, reads or clears codes, and views live data. You can turn off the error light and identify issues in the emission system even before an inspection.
Saves You Time & Money
TOPDON’s AL400 helps you save hundreds of dollars from unnecessary repairs and spare you from avoidable trips to automotive shops. This scan tool gives the same essential information you’d get at the dealer, and there’s no labor cost. Even if you don’t want to perform the repairs, use the ArtiLink 400 to arm yourself with knowledge of potential problems and demand exactly what you need.

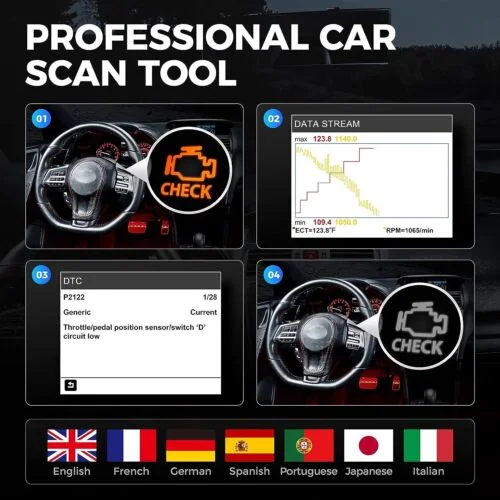

Helps Troubleshoot Tricky Issues
This diagnostic tool gives you a window into what may be wrong with your car when the check engine light shows up. It can effectively read and clear the check engine light, as well as retrieve codes to tell you the exact nature of an emission-related issue. You may find a misfiring engine or a loose gas cap before they’re a real problem.

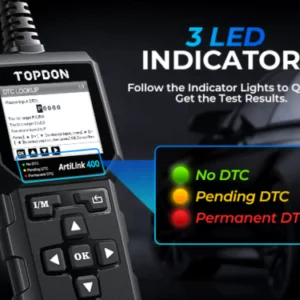

3-Color LED Indicators
This diagnostic OBD2 code reader also has an “ideal early warning system” to help you find possible dangers before they occur, with red, yellow, and green LED lights that indicate the health status at a glance. The RED light alerts you when fault codes are found; the YELLOW shows up when there is a pending code; the GREEN light appears when there are no fault codes.

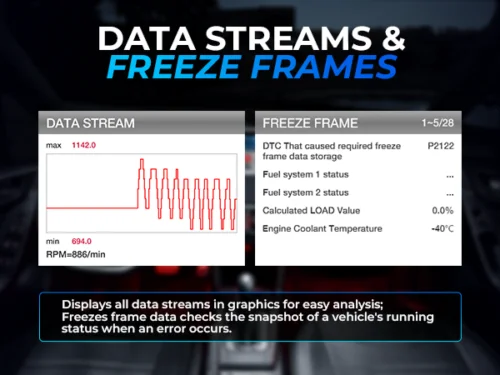

Graphic Data Stream
Another highlight of this scan tool is the real-time error detection, which is presented in graphics and can be merged for easy and intuitive car diagnosis. You’ll be quickly notified of a problem as soon as it appears to help you pinpoint any underlying issues and get your vehicle back on the road in no time.
DTC Lookup Library
This diagnostic tool will expand your information on any generic or manufacturer-specific code for better interpretation and analysis. You don’t have to search for the code online to see what it means with this function. It’s all in black and white on your portable device!
2.4” TFT Color Screen
This obd2 scanner comes with a 2.4” color display that is bright enough for you to see the data in any light condition easily. The icons are simple to understand, and the menu is easy to operate. The ArtiLink 400 is the ideal tool for beginners! All you need to do is plug it into the OBD2 port.

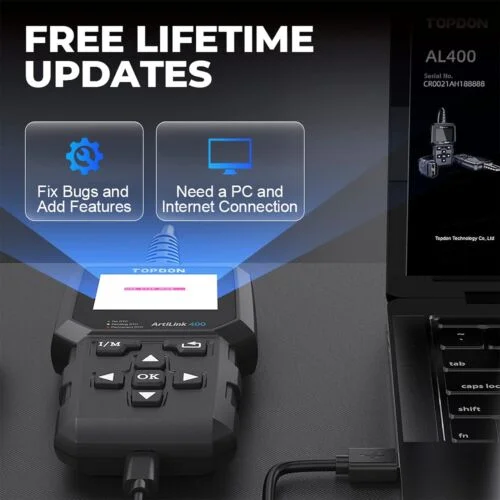

Lifetime FREE Updates
TOPDON’s AL400 is constantly updated to run smoothly and offer more vehicle compatibility. Unlike other automotive scan tools, this tool doesn’t require subscription fees. With the ArtiLink 400, you get a diagnostic tool that can be updated through its lifetime with NO extra costs.
Multi-Language Support
This scan tool presents information in various languages. You can display data in English, French, Spanish, German, Italian, Portuguese, and Japanese.
**The software needs to be updated for a successful language switch.
1996 and Newer Vehicle Coverage
If you have an OBDII compliant vehicle, TOPDON’s AL400 can help you diagnose it. This OBD2 scanner works on most cars sold in America, Europe, and Asia with the model year of 1996 or newer. The ArtiLink400 is compatible with the following protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM, and CAN (Controller Area Network).
Your Vehicle Diagnostics Expert
With this diagnostic scanner, you can easily make repairs from your garage, perform emissions tests, and gain insight into your engine’s health. Skilled professionals can make necessary repairs and adjustments with this device. This is the perfect tool for both DIYers and professional technicians.
