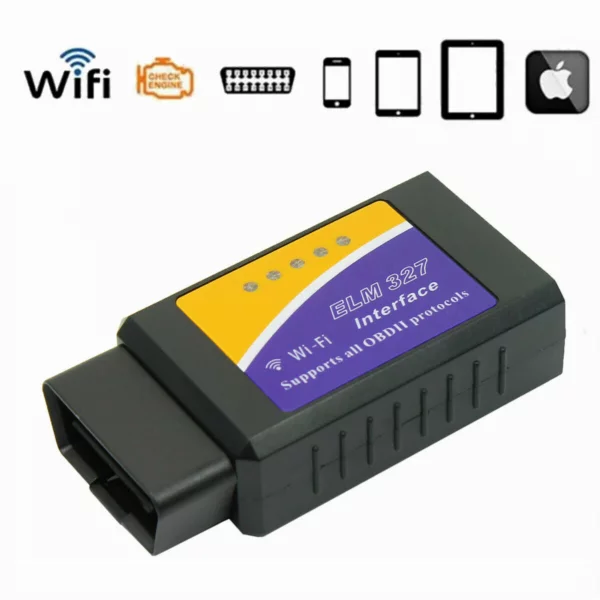

ELM327 WiFi OBD2 OBDII Car Diagnostic Scanner

Description

Understanding the ELM327 WiFi OBD2 OBDII Scanner

The ELM327 WiFi OBD2 OBDII car diagnostic scanner serves as a versatile tool for both professional mechanics and car owners, offering a bridge between vehicle systems and mobile devices. This compact and user-friendly device plugs into the OBD2 port of your vehicle, allowing you to connect via WiFi to your iOS or Android smartphone or tablet. Through specialized apps, users can read and clear diagnostic trouble codes (DTCs), monitor real-time data, and gauge vehicle performance metrics.

Notably, the ELM327 is compatible with almost all vehicles manufactured after 1996. This broad compatibility stems from standardization in OBD2 protocols worldwide, making the ELM327 a universally applicable tool. The advantage of WiFi connectivity enhances its usability by eliminating the need for cables, creating a seamless and hassle-free experience.

Getting started with the ELM327 WiFi OBD2 OBDII scanner is straightforward. After plugging the device into the vehicle’s OBD2 port, users need to connect their smartphone or tablet to the WiFi network created by the ELM327. Next, open an OBD2 compatible app—many of which are available from both Google Play and the Apple App Store. These apps facilitate various diagnostic functions, from reading and clearing codes to viewing live sensor data.

Technical specifications of the ELM327 scanner include a robust chipset capable of processing data efficiently. It supports multiple OBD2 protocols such as ISO 9141, KWP2000, J1850 VPW, and CAN, enhancing its operability across different makes and models of vehicles. This makes the installation process simple, requiring no special tools or mechanical knowledge.

The real-world applications of the ELM327 are extensive. Professional mechanics value it for its reliability and expansive diagnostic capabilities. Car owners appreciate its convenience for performing basic car maintenance and diagnostics at home. By providing actionable data on vehicle health, the ELM327 empowers users to tackle car issues proactively and maintain optimal vehicle performance.

How to Use the ELM327 WiFi OBD2 OBDII Scanner

The ELM327 WiFi OBD2 OBDII scanner is a versatile tool that empowers car owners with detailed diagnostic capabilities. To get started, connect the scanner to your car’s OBD2 port, typically located beneath the dashboard on the driver’s side. Once plugged in, a light on the device indicates it’s powered and ready for use.

Next, sync the scanner with your smartphone or tablet. Switch on your vehicle’s ignition without starting the engine, then navigate to your device’s WiFi settings. Locate the network corresponding to the ELM327 and connect. Ensure that any previously connected WiFi networks are disabled to avoid connectivity issues.

Once connected, open your preferred OBD2 app. Popular choices compatible with both iOS and Android include “OBD Fusion,” “Torque Pro,” and “Car Scanner ELM OBD2.” Each app may require initial setup, including vehicle data entry like make, model, and year. Follow the app’s instructions to complete these steps.

With the setup complete, you can now access the scanner’s functionalities. To read Diagnostic Trouble Codes (DTCs), choose the ‘Read Codes’ option within the app. The app will pull data from the vehicle’s systems, and specific codes will appear, indicating any issues. Use the app’s reference library or an online database to interpret these codes and understand their implications.

The ELM327 scanner also allows for monitoring live data in real-time. Through the ‘Live Data’ feature, view information such as engine RPM, coolant temperature, and fuel trim. This data is invaluable for diagnosing performance issues and understanding your car’s health.

If you need to reset the check engine light after resolving issues, select the ‘Clear Codes’ or ‘Reset’ function. This action will disable the check engine indicator, providing peace of mind that your vehicle’s problem has been addressed.

Troubleshooting common issues is essential for effective use of the ELM327 scanner. Connectivity problems often stem from conflicting WiFi networks or app settings. Regular firmware updates and app updates enhance compatibility and performance. For long-term maintenance, ensure the scanner remains clean and dry, and periodically check for software updates.

Visual aids, such as screenshots within this blog and user manuals sourced from the app’s developers, can further assist in mastering the use of your ELM327 WiFi OBD2 OBDII scanner. These practical examples will shorten the learning curve, making it a valuable tool for every car owner.

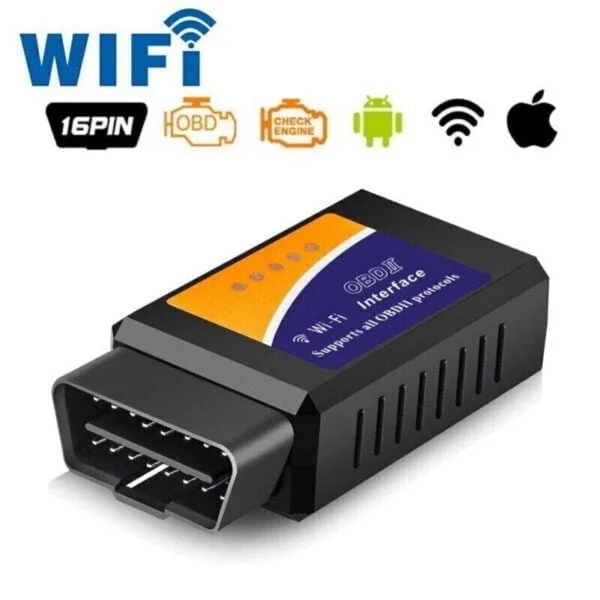

V03HW WIFI OBD2 ECU Computer Interface Car Fault Detector Phone Car Scanner Tool

Features:

Brand new and high quality.

Product Name: OBDII

Product Type: V03HW

Hardware version: V1.5

SSID: WiFi_OBDII

IP: 192.168.0.10

Port: 35000

Main control chip: PICI8F25K80

Software platform: Support Android / Windows / iOS

Interface Description: 16pin OBDII standard

Specifications:

Working voltage: 9V~16V

Working current: 65mA

Standby current: 45mA

Working temperature: -40°C~85°C

Working humidity: less than 60%

Product size: 45mm X 25mm X 75mm

Packing size: 66mm X 100mm X 25mm

Package weight: 50g

Material:ABS

Software platform:

Compatible software:

Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN, etc.

Android version: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD, etc.

Saipan version: OBDScope.

Compatible platform:

Software support platform: Windows XP, Windows 7/8, Android, Saipan, etc.

Supported Protocol:

SAE J1850 PWM (41.6Kbaud)

SAE J1850 VPW (10.4Kbaud)

ISO9141-2(5 baud init, 10.4Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

The Software Can Perform The Following Operations:

1. Read the error diagnostic code – generic and vendor specific, and show what they mean (the database has more than 3000 generic code definitions)

2. Clear the error code and turn off the MIL (check engine indicator).

3. Display current sensor data, including:

– Engine speed per minute (RPM)

– Calculated load values

– Coolant temperature

– Fuel system status speed

– Short term fuel situation

– Long term fuel situation

– Intake manifold pressure

– Injection advance time

– Intake temperature

– Air velocity

– Absolute position of throttle valve

– Oxygen detection voltage associated with short term fuel state

– Fuel system status

– Fuel pressure

– There are many other data for fuel consumption monitoring.

Question& Answer

1)Can it read abs airbag troubles codes?

This codes reader only can read OBDII engine system which does NOT include ABS, SRS, Transmission,Stability or Regular Maintenance lights.

2)Can I keep it plugging in the OBDII port?

It is no problem to leave it plugged in port if you don’t drive it too long ever time.But we suggest you pull out after you use it ,which can make it longer to use

3)could I check engine temperature oil pressure and gas quantity with this device?

It depends on the sensors manufacture installed on your vehicles OBDII system.Generally speaking the newer vehicles are likely to have these sensors,

Package Content:

1 x WIFI OBDII Scanner
