What is a Lever Block Chain Hoist?

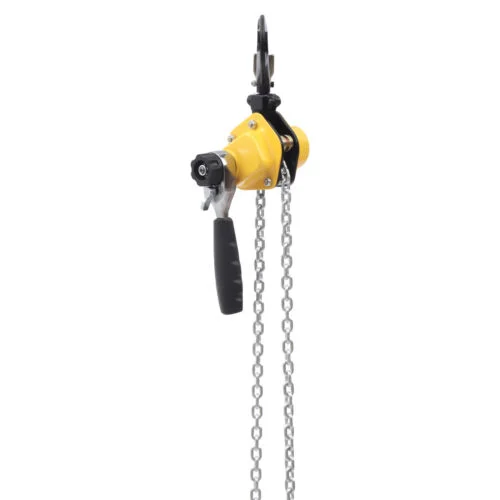

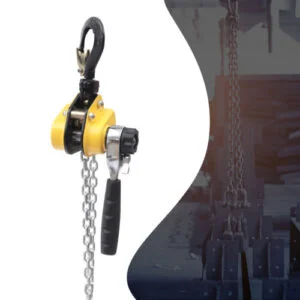

Lever Block Chain Hoist 0.5 Ton Ratchet Come Along Puller 1.5m Mini Puller Chain

A lever block chain hoist is a versatile lifting device engineered to raise, lower, and maneuver heavy loads efficiently using a lever and ratchet mechanism. It is designed to tackle demanding tasks in various industrial and construction settings, where its robust performance and portability make it an invaluable tool. This mechanism leverages mechanical advantage, enabling users to lift loads up to 0.5 tons with minimal physical effort.

The primary components of a lever block chain hoist include a lever handle, ratchet, load chain, and hooks. The lever handle, typically ergonomically designed, is pivotal in releasing and locking the ratchet mechanism. The ratchet, coupled with the lever, allows for incremental movement and load control, making the hoist highly reliable and precise in lifting operations.

The load chain, often constructed from high-strength alloy steel, ensures durability and capacity to withstand substantial weights.

One distinguishing feature of the lever block chain hoist is its ratchet come-along mechanism. This provides unparalleled control over load positioning and movement, enhancing operational safety. . This makes it an ideal option for remote locations or environments where power supply reliability is a concern.

Moreover, compared to traditional chain hoists, the lever block chain hoist excels in ease of transportation and setup. Its compact design coupled with a manageable weight facilitates quick deployment across different sites, adding to the efficiency and versatility of the tool. Users can achieve impressive performance without the complexity and bulk associated with other heavy-duty lifting equipment.

In summary, the lever block chain hoist, with its 0.5-ton capacity and precision ratchet come-along mechanism, stands out as a practical and efficient solution for heavy lifting tasks, combining simplicity, portability, and reliability.

Applications and Benefits of the 0.5 Ton Ratchet Come-Along Puller with 1.5m Mini Puller Chain

The 0.5-ton ratchet come-along puller with a 1.5m mini puller chain is a versatile tool widely used across various sectors. Its compact design and robust functionalities make it highly valuable in construction, warehousing, and maintenance work.

In the construction industry, this tool is indispensable for tasks such as positioning and aligning frameworks, beams, and scaffolding. It is particularly beneficial in scenarios where space is limited, allowing for precision work in tight quarters. Due to its lightweight and portable nature, it can be easily transported to different locations on-site, ensuring convenience and operational efficiency.

Warehousing operations also significantly benefit from the use of the 0.5-ton ratchet come-along puller. It aids in the maneuvering of heavy pallets and bulky goods, effectively facilitating the organization of inventory. The tool’s powerful braking system and load control mechanisms contribute to enhanced safety during the handling of materials, reducing the risk of accidents.

In the realm of maintenance work, this mini puller chain proves equally advantageous. Activities that involve the maintenance of heavy machinery or the repositioning of equipment can be performed with greater ease and safety. The ratchet mechanism ensures precise control over the load, providing a reliable means to manage heavy or awkward items without excessive effort.

Specific use cases highlight the tool’s practicality and safety features. For instance, during the repair of large HVAC systems, the compact size of the puller enables technicians to lift components in confined mechanical rooms securely. Similarly, in the installation of industrial shelving units, the come-along puller helps in lifting and aligning shelves without causing physical strain or requiring additional machinery.

Overall, the 0.5-ton ratchet come-along puller with a 1.5m mini puller chain offers compelling benefits, including ease of transport, enhanced control during lifting or pulling operations, and assured reliability across various demanding applications. These features underscore its role as a crucial tool in ensuring efficiency and safety in diverse professional settings.

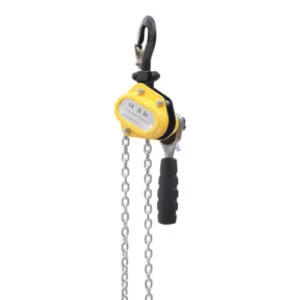

Mini Lever Block Chain Hoist 0.5 Ton 1100lbs

Manual Chain Hoist 1.5M 5Ft Chain Hoist   Description This is a robust, portable mini chain hoist with a rated lifting capacity of 1100Lbs to help you get the job done with ease. It is designed with double ratchet brakes and a fuse piece to give it a high level of safety so you can use it with confidence. It is very labor-saving, and the high-quality product can be widely used in many fields.

Key Features Smooth Lifting and Lowering: It uses a high-quality chain guide wheel, which can fit the chain direction, and is not easy to jam the chain so that you have a good experience. Adjustable Chain Length: You can adjust the chain length by the knob (up, down, and neutral adjustment) above the handle. And the length of the chain is 1.

Lever Block Chain Hoist 0.5 Ton Ratchet Come Along Puller 1.5m Mini Puller Chain



Mini Lever Block Chain Hoist 0.5 Ton 1100lbs Manual Chain Hoist 1.5M 5Ft Chain Hoist

Description

This is a robust, portable mini chain hoist with a rated lifting capacity of 1100Lbs to help you get the job done with ease. It is designed with double ratchet brakes and a fuse piece to give it a high level of safety so you can use it with confidence. It is very labor-saving, and the high-quality product can be widely used in many fields.

Specification

Model: HSH-DC500

Color: Yellow, Black

Casing Material: Iron

Hook Material: 35CrMO

Chain Material: Galvanized (G80 Grade)

Pull ring Material: Nylon

Handle Cover Material: PP

Carrying Bag Material: Oxford Cloth

Rated Lifting Capacity: 0.5T/ 1100Lbs

Standard Lifting Height: 1.5m/ 4.92ft

Hand Board Force at Full Load: 260N

Test Load: 750Kg/ 1653.47Lbs

Chain Length: 1.5m/ 5ft

Product Size: 28.5*9.5*8.7cm/ 11.22*3.74*3.43in

Package Size: 23.36*15*13.2/ 9.2*5.91*5.2in

Net Weight: 3.2kg/ 7.05lbs

Gross Weight: 3.4kg/ 7.5lbs

Package Included

1 * Mini Chain Hoist

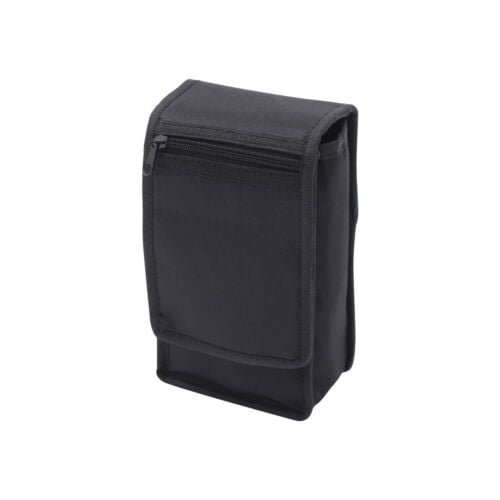

1 * Black Carrying Bag

Key Features

Smooth Lifting and Lowering: It uses a high-quality chain guide wheel, which can fit the chain direction, and is not easy to jam the chain so that you have a good experience.

Adjustable Chain Length: You can adjust the chain length by the knob (up, down, and neutral adjustment) above the handle. And the length of the chain is 1.5m/5ft, which can well meet your lifting needs.

High Load-bearing Capacity: With a rated lifting capacity of 0.5T/ 1100Lbs, it can easily lift heavy loads to meet your needs.

High Security: It has passed 1.5 times the rated load tensile test before leaving the factory, and it has a fuse piece on the lower hook to effectively prevent heavy objects from falling off, so you can use it more safely and securely.

Save More Effort: It uses gear transmission, with high strength and toughness and can easily cope with a variety of loads, to save your energy.

Highly Portable: Its proper size (11.22*3.74*3.43in) and weight (7.05lbs) allows you to carry it around with you. And we also have a carrying bag for you, you can put it in the bag and hang it on your waist for an emergency.

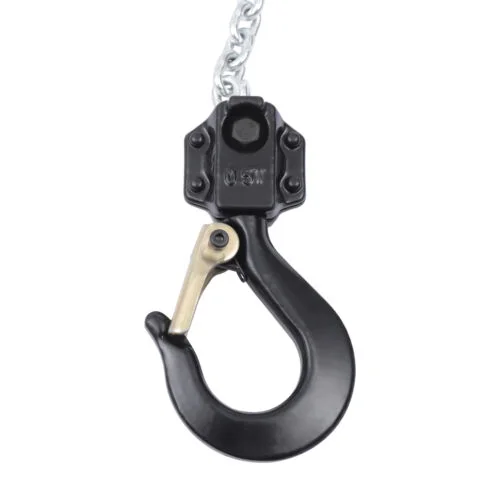

360° Rotating Lower Hook: Its lower hook can be rotated 360° to facilitate your loading and unloading of goods.

Durable Material: Its hook is made of 35CrMO, which is stable and not easy to be unhooked. The chain is a high-strength galvanized chain, which is strong and durable without fear of heavy pressure. You can use it for a long time with confidence.

Details

Double Ratchet Brake: It uses a double ratchet brake. Once you let go of it, it will lock itself to prevent loss of control, for your safety in use.

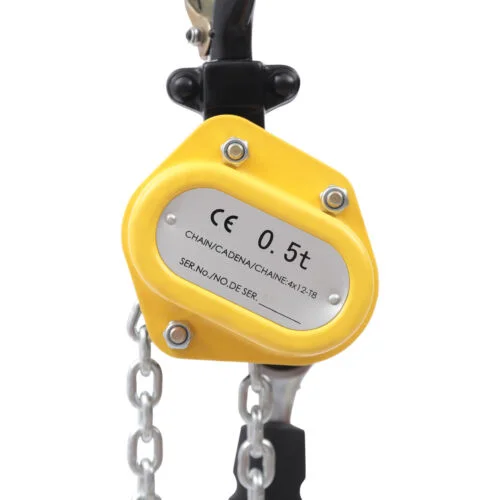

Iron Casing: The iron casing gives it good resistance to falls and dust, allowing you to use it for a long time.

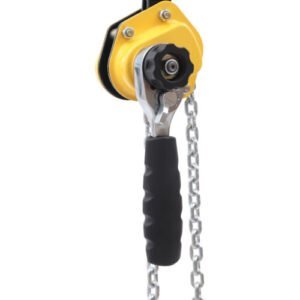

User-friendly Handle: Its handle is ergonomically designed and comes with a PP handle cover, allowing you to have a better grip while not slipping easily when using.

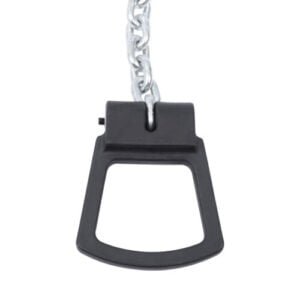

Thickened Pull Ring: The thickened pull ring design allows you to have a comfortable grip and is not easy to slip.

G80 Grade Chain: The G80 grade lifting chains will be tested many times in tension, which has the characteristics of high strength, anti-abrasion, and non-deformation. So you can use them with confidence.

Application

It can be used for lifting or fixing at construction sites, warehouses, garages, shipbuilding docks, automotive facilities, workshops, installations, mines, factories, and farms.
