10 HP 3Ph 230V ASME Rotary Screw Air Compressor

Description

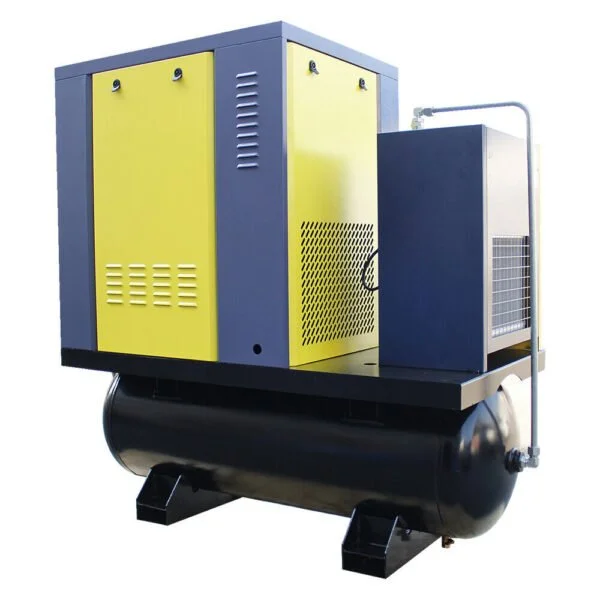

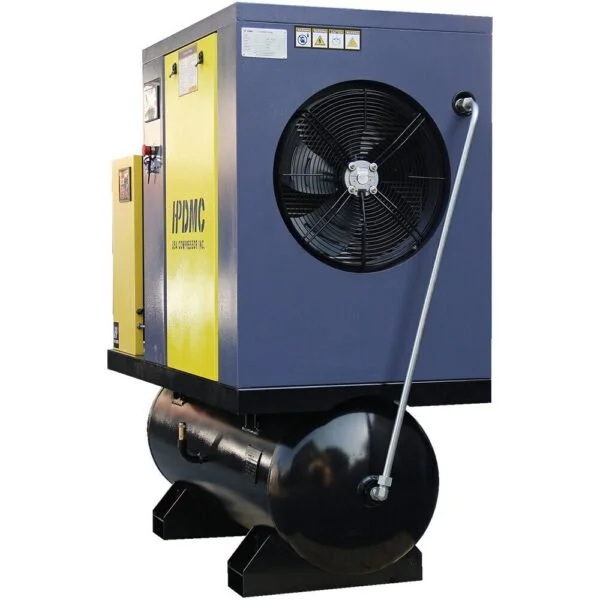

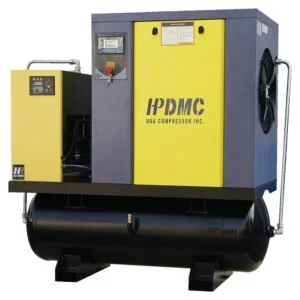

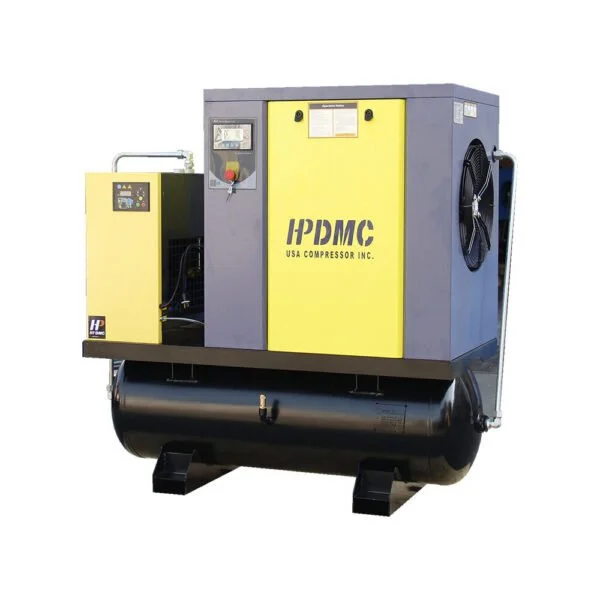

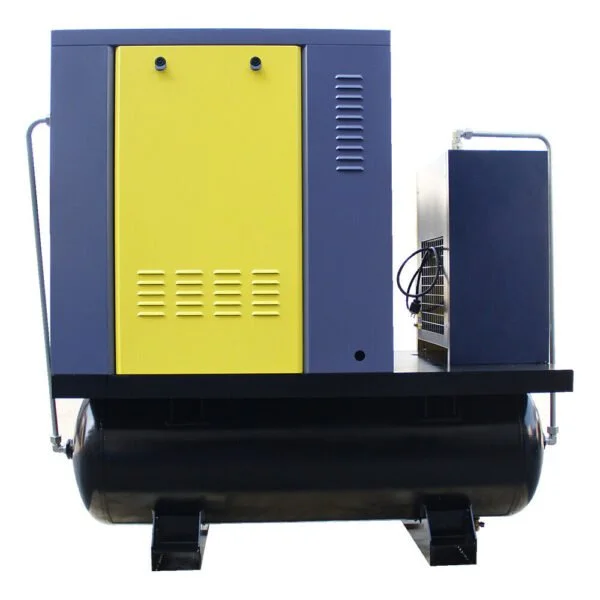

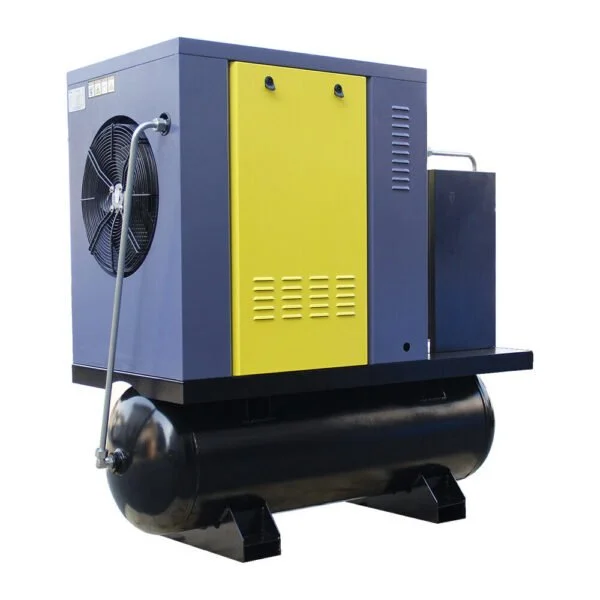

10 HP 3-Phase 230V 80 gal. Stationary Electric Rotary Screw Air Compressor with Refrigerated Dryer

Model:PACK7-TA

Technical details

Model: PACK7- TA

Air Dryer Included: Yes

With Tank: 80 Gal. ASME Tank

Hp-Air Compressor: 10 HP

Phase – Electrical: 3

Input Voltage: 230V 60Hz

Free Air CFM @ Max. Pressure: 39-35

(F)NPT Outlet: NPT 1″

Max. Pressure: 125 psi

Full Load Amps: 24A

dBA @ 3 Feet: 80

Motor RPM: 3600

Duty: Continuous

Ambient Temp. Range: 45

Overall Length: 71″

Overall Depth: 25″

Overall Height: 55.5″

Packing Weight: 900 lbs

The product is three-phase and is intended for three-phase use only; it cannot be turned into single-phase use through a converter.

Application:

Garage & Industrial

Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Cutting,Drilling,Framing Nailing,

Grinding,HVLP Painting,Inflation,Sanding,Spraying,Surface Prep

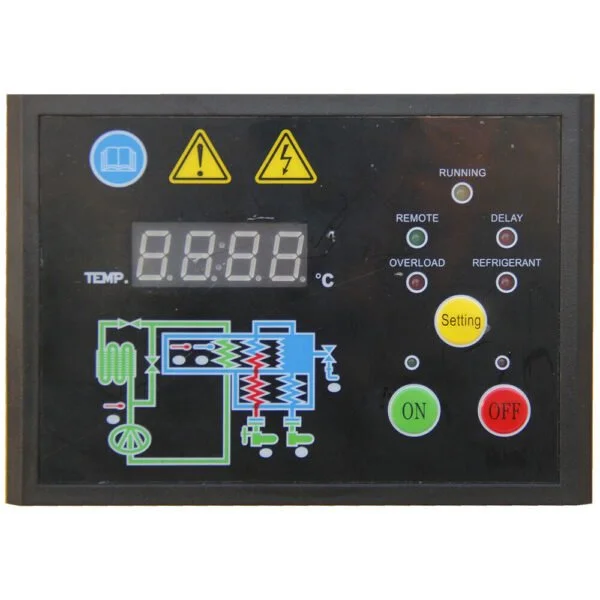

Integrated Refrigerated Air Dryer prevents rust in compressed air piping & avoids damage to tools.

Premium Air System in high quality components ensures durability with constantly high efficiency.

Spin-On Oil Separator easy access for quick maintenance easy to remove & install saving time.

【Easy For Maintenance】

All components are easily accessible for fast easy maintenance. Annual maintenance operations only include changing the filters

and oil at predetermined intervals. Oil and Separator filters are spin-on style. Inexpensive parts and oil combine with long operating

intervals to deliver significant savings over the life of the machine.

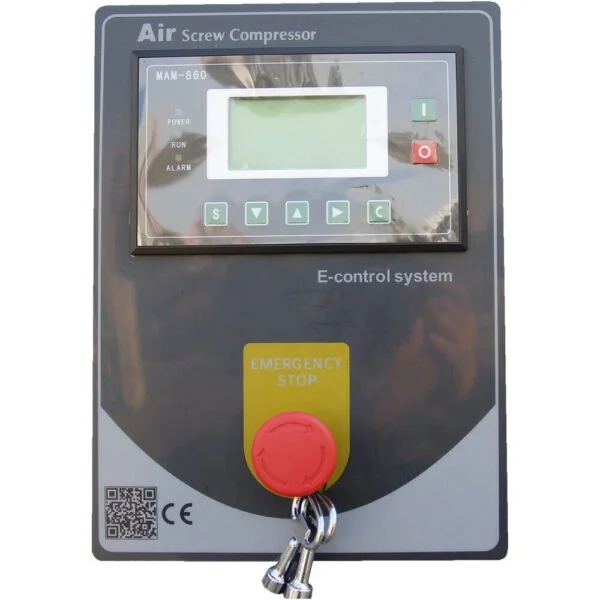

【Meet Your Needs】 This 10 HP rotary screw air compressor offers many features, including a PLC that will allow for easy and intuitive scheduling and operation. Paired with HPDMC local customer service,we are confident this air compressor

will meet your compressed air needs for years to come.

【Simple Installation】A small footprint and lower noise levels mean increased installation flexibility, making the HPDMC air compressor ideal for most applications. And, with the optional receiver tank and integrated dryer, you will save valuable floor space and lower your cost of operation.

【Product Application】HPDMC compressor can widely used for tire shop,maintenance shop,vehicle body or automotive dealership.

It can be installed almost anywhere with an optional inter grated dryer and tank, and for all components are easily accessible

for fast easy maintenance.

The following are rotary screw air compressor accessories.

W719-5 Oil Filter

Spin-On Oil Separator Replacement

Max.Work pressurre：14 Air flow: 1 m3/min Air flow：1m³/min Flange: 62mm d1：3/4″-16UNF Lower outer diameter: 76mm d2：62 mm Inside diameter/thread: M22*1.5mm d3：71 mm Height: 123mm d4：80 mm   d5：76 mm   h：123mm

Air Filter Replacement

Universal 18L Lubricant

Air flow: 1m³/min Length: 32cm Diameter: 100 mm Width: 32cm Inside diameter: 67 mm Height: 37cm Height: 79 mm Volume: 18L/ 5Gal.
