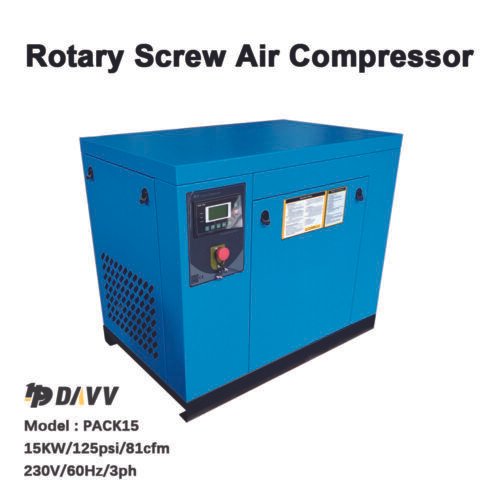

15KW Rotary Screw Air Compressor with Dryer

Description

【Parameters】

Model :PACK15

Air Dryer included:No

With Tank: Tankless

 Power : 20HP / 15KW

Input Voltage: 230V/60Hz/47amps, 3Phases

Phase – Electrical: 3

Free Air CFM @ Max. Pressure: 81

Max. Pressure: 100-125 psi

Full Load Amps: 27.1A

Motor RPM: 3600

Overall Length: 45″

Overall Depth: 40″

Overall Height: 49″

Packing Weight: 900 lbs

Output Pipe Diameter : NPT 3/4″;

Air Flow : 81cfm ,

Max Working Pressure : 125 psi / 8 bar/47.1 Amp；

Motor : 3600rpm；

Spin-on Air Oil Separator

 Application

 Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Cutting,Drilling,Finish Nailing,Framing Nailing,Grinding,HVLP Painting,

Hobby Nailing,Hobby Painting,Inflation,Roof Nailing,Sanding,Spraying,Surface Prep

 【Stable & Durable Structure】

 All components are easily accessible for fast easy maintenance.

Annual maintenance operations only include changing the filters and oil at predetermined intervals.

Inexpensive parts and oil combine with long operating intervals to deliver significant savings over the life of the machine.

【Spin-on Air Oil Separator】

 Air cooled after cooler to reduce discharge air temperatures with the spin-on oil filter and separator element,

with the friendly compact structure speeds up your work and minimizes downtime.

It can used safely in all applications of small and medium sized businesses.

【Application】

  Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Cutting,Drilling,Finish Nailing,Framing Nailing,Grinding,

HVLP Painting,Hobby Nailing,Hobby Painting,Inflation,Roof Nailing,Sanding,Spraying,Surface Prep
