Description

【Parameters】

Power : 10HP / 7.5KW;

Input Voltage: 230V 60Hz/ 1 phase;

Air Flow : 39cfm;

Max Working Pressure : 125 psi / 8 bar;

Motor : 3600rpm

Output Pipe Diameter: NPT1″

Package: 77*36*61″

Weight: 900lbs

Tank: ASME 80 gal.

The product is three-phase and is intended for three-phase use only; it cannot be turned into single-phase use through a converter.

【Application】

Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Cutting,Drilling,Finish Nailing,Framing Nailing,Grinding,

HVLP Painting,Hobby Nailing,Hobby Painting,Inflation,Roof Nailing,Sanding,Spraying,Surface Prep

Garage & Industrial

Regular maintenance interval schedule

Every 50 hours or weekly

— Check oil level.

— Check intake filter, if necessary clean it.

— Drain condensation water from oil tank.

Every 500 hours

— Check and adjust belt tension if necessary (belt driven only)

Every 2000 hours

  • Replace lubricants (for mineral lubricants oil)

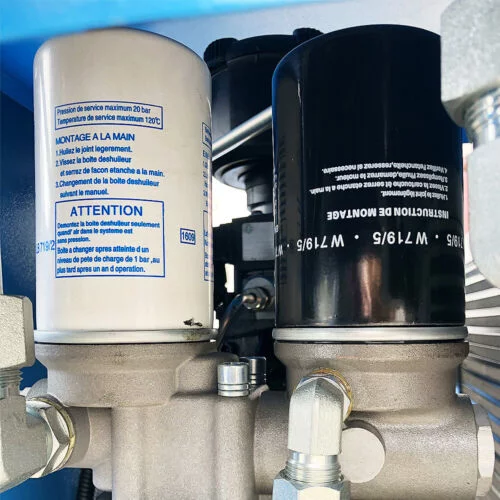

  • Replace oil filter.
  • Replace intake filter

Every 4000 hours

  •  Replace lubricants (for synthetic lubricants oil)
  • Replace oil separator
  •  Clean cooler for dirt

Attention: Attention:

1、 Replace filter element and lubricant after first 500 hours of operation.

2、 Use incorrect lubricant oil and spare parts will cause compressor damage, only use original manufacture oil and parts.

3、 The service life of compressor depends on the environment conditions such as dust, vent etc.
