QGS 15HP Rotary Screw Air Compressor W/ Dryer
Related Products
- Description
- Additional information
Description

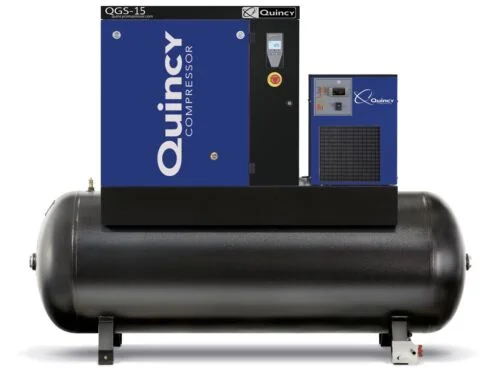

New Quincy QGS-15 Rotary Screw Air Compressor 15 HP w Dryer & 120 G Tank
2022 Quincy QGS-15 Rotary Screw Air Compressor 15 HP with Dryer and 120 Gallon Tank
Comes with an integrated refrigerated air dryer and a 120 Gallon Tank.
Product Description:
The Quincy QGS series is an economically priced rotary screw compressor package that can be used in a wide range of applications.
This Unit is belt driven and includes an auto tensioning device that provides ease of maintenance and long belt life.
Key Features & Benefits:
All QGS models have quick change filter and separator designs that minimize downtime and reduce labor costs associated with machine maintenance.
They also have extremely low sound ratings allowing the machines to be placed close to the manufacturing floor.
Technical Information:
Available Flow (Capacity) in 15Hp
59.0 acfm @ 100 psig
55.9 acfm @ 125 psig
50.0 acfm @ 150 psig
40.7 acfm @ 175 psig
Air Receiver : 120 gal
Sound Level: 69 dBA
Weight: 760 lbs
Dimensions: 76.2 x 25.2 x 57.8 inches .
Product Summary
The Quincy QGS Rotary Screw Air Compressor offers superior compressed air performance in a compact, modern and quiet design.
This extremely quiet rotary screw compressor features a continuous 100% duty cycle and operates without the high vibration
and sound levels produced by typical reciprocating compressors.
A small footprint and lower noise levels offer increased installation flexibility, making the QGS ideal for most applications.
Comes equipped with a TEFC electric motor, V-belt drive, oil-injected twin screw pump, standard quiet enclosure, 8000-hr.
premium synthetic fluid, ASME certified receiver tank and more.
