Fill-Rite 807CMK Mechanical Fuel Transfer Meter

Description

Overview and Specifications of the Fill-Rite 807CMK

The Fill-Rite 807CMK is a high-precision fuel transfer meter designed to provide accurate and reliable measurement of fuel flow rates. Developed with a mechanical design, the Fill-Rite 807CMK stands out due to its robust construction and dependable performance. The primary features of this meter include its mechanical calibration capabilities, which allow for adjustments to maintain accuracy over long-term usage. The construction materials used enhance its durability, ensuring the meter can withstand the rigors of demanding environments.

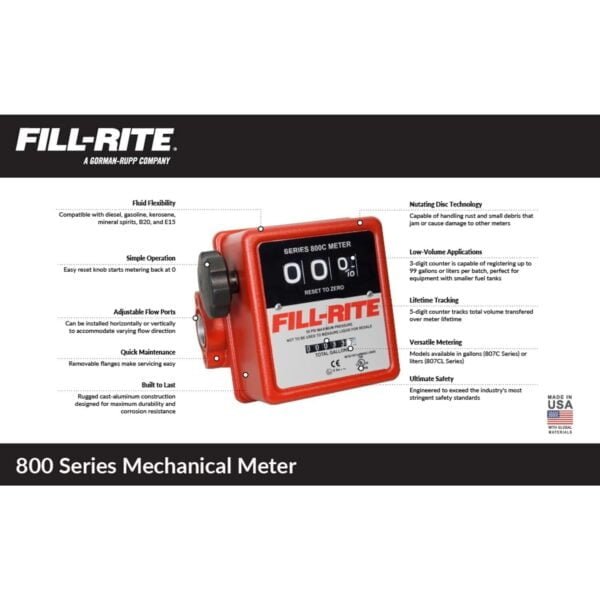

One of the key specifications of the Fill-Rite 807CMK is its range of fuel flow measurement, notably between 5 to 20 gallons per minute (GPM). This capacity ensures it can accommodate various fuel transfer applications. Its 3/4″ inlet and outlet ports are compatible with standard fuel hoses, making it a versatile component in many systems. The meter is also equipped with a 3-wheel mechanical counter, which ensures measurements are not only accurate but also easy to read. This feature greatly aids in monitoring fuel usage meticulously, thus supporting effective fuel management practices.

The Fill-Rite 807CMK’s durability is further complemented by its compatibility with multiple fuel types, including gasoline, diesel, kerosene, and biodiesel (up to B20). The use of high-quality materials such as aluminum and stainless steel components underpins this compatibility, enabling the meter to resist corrosion and wear. Additionally, the meter has been tested to ensure reliable performance, making it an ideal choice for use in a variety of conditions from commercial refueling stations to agricultural settings.

Overall, the Fill-Rite 807CMK fuel transfer meter is a robust and reliable tool designed to facilitate accurate measurement of fuel flow. Its mechanical design, capacity for calibration, and compatibility with various fuel types make it a preferred choice for users who require precise fuel monitoring and long-lasting performance.

Installation and Practical Applications

The Fill-Rite 807CMK 3/4″ fuel transfer meter is designed for efficient installation and usage in various settings, delivering accurate readings with minimal effort. First, gather the necessary tools: adjustable wrenches, Teflon tape, pipe dope, and a mounting bracket if applicable. Begin by determining the optimal placement for the meter, ideally in a position that is easily accessible and provides stability. This is crucial in agricultural, construction, and industrial environments where readability and ease of access are paramount.

To install the Fill-Rite 807CMK, start by applying Teflon tape or pipe dope to the threaded connections to ensure a secure and leak-free fit. Attach the meter to the fuel transfer pump or a suitable fuel line segment, ensuring that the arrows on the meter body align with the fuel flow direction. Tighten all connections with adjustable wrenches, being careful not to overtighten and potentially damage the fittings. If a mounting bracket is used, secure the meter to a stable surface to prevent vibrations or movements that could affect accuracy.

Once installed, the Fill-Rite 807CMK is particularly effective in several practical scenarios. In agricultural settings, it provides precise fuel measurement for equipment like tractors and harvesters. In construction, it ensures accurate fuel monitoring for heavy machinery such as excavators and loaders. Within industrial environments, the meter facilitates controlled fuel dispensing for generators and other critical systems.

Regular maintenance is key to ensuring the long-term functionality of the Fill-Rite 807CMK. Periodically inspect the meter for any signs of wear, leaks, or damage. Check and clean the strainer to prevent blockages that could impede fuel flow. Calibration checks should be conducted to uphold measurement accuracy, adjusting as necessary according to the manufacturer’s instructions.

Troubleshooting common issues involves verifying the integrity of connections, ensuring no air bubbles are trapped in the fuel line, and confirming the proper installation of the meter in line with flow direction. Addressing these aspects promptly can prevent operational interruptions and maintain the meter’s reliability.

By following these steps, users can seamlessly integrate the Fill-Rite 807CMK into their fuel management systems, enhancing operational efficiency across various sectors.
