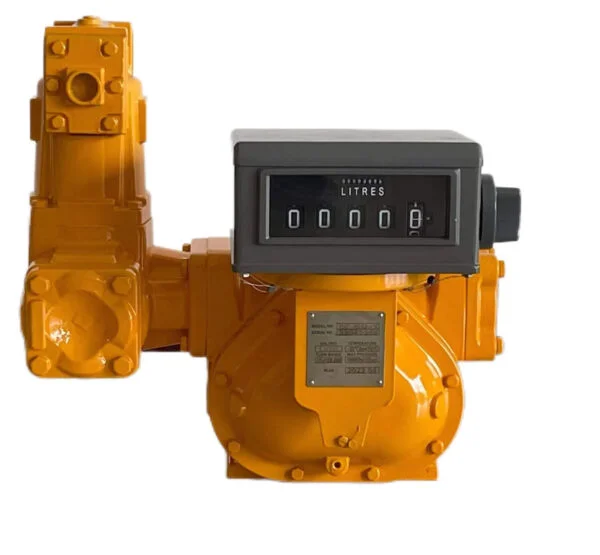

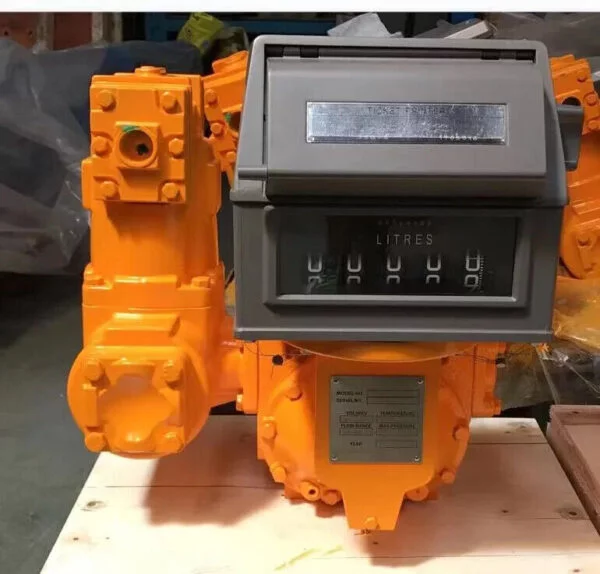

Mechanical PD Fuel Station Flow Meter M50 2″

Description

Product Detailed DN50 M-50-1

Characteristics

•Excellent stepless adjusting mechanism allows a micro adjustment of the meter

•High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow

•Low maintenance, no metal-to-metal contact in measuring chamber, long life service

•Low pressure loss, a true gravity flow meter

•Accuracy regardless of pressure fluctuations, temperature variation, viscosity

•Choice of aluminum, cast iron and stainless steel materials of construction

M-50-KX-1 Preset Meter with Register,

Preset Register,

Specification: Model, M-40-1, M-50-1, M-50H-1, M-80-1, M-80H-1, M-100-1, M-100H-1, M-150-1, M-150H-1

Size:    40mm /1.5”, 50mm / 2 “, 80mm / 3 “, 100mm / 4 “, 150mm / 6 ”

Volume/Rev:   0.309L, 0.681L, 1.839L, 5.102L, 9.507L

Flow Range: (L/Min), 25-250, 38-380, 55-550, 75-750, 115-1150, 130-1300, 170-1700, 225-2250, 300-3000,

Max.Pressure:  10Bar/150PSI, 25Bar/350PSI

Accuracy:  ±0.2%

Repeatability: ≤0.05%

Standard Measurement: Liter / US Gallon/IMP Gallon

Viscosity: 30SSU~1,500,000SSU

Model No. Description

Industries

• Automotive;

• Adhesives;

• Agriculture;

• Asphalt ;

• Aviation fueling ;

• Animal feeds; Beverage;

• Cosmetics ;

• Chemical processing;

• Concrete Add mixtures;

• Dairy; Liquid fertilizers;

• Food processing ;

• Fuel oil delivery;

• General industrial;

• Hydrocarbon processing;

• Liquefied gases;

• Lube oils; Marine;

• Paint and varnish;

• Petroleum marketing;

• Petroleum production ;

• Pharmaceutical;

• Printing ink;

• Pulp &paper;

• Refining commercial Solvents;

• Recycling Railroad ;

• Textile.

Application

• Refined petroleum products;

• Aviation gasolines and jet fuels;

• A wide variety of products such as: liquid sugars, corn syrup, corn

sweetners, dextrose,fructose, sucrose, maltose, lactose, corn oil,

soy bean oil, cotton seed oil, coconut oil;

• Treated waters (deionized, demineralized, and potable);

• Chlorinated solvents and general solvent metering;

• Acid pH liquids;

• Liquefied petroleum gas(LPG);

• Crude oil, also for heated and/or viscous liquids;

• Oil or water based latex products, polyester resins,

and adhesives (neutral pH), also for metering herbicides and

nitrogen fertilizer solutions;

• Herbicide;

• Sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT

and NOD) and other alkaline pH liquids;

• Abrasive liquids.

V & VS series Piston Valves

V series Mechanically actuated piston valves are designed for mounting on the meter outlet to completely shutoff the liquid flow with easy operation under any pressure system. The valve can be operated manually or connected via a mechanical linkage to a preset counter on the meter for single stage closure or two-stage closure to eliminate hydraulic shock. The valve is indexable in 90o turn for up & down or side facing outlet. 2″,3″,4″ available for option.

V-80 Piston Valve

Technical Specification

Model:  V-50

Diameter:  1.5″& 2″

Used for Meter: M-40, M-50, M-50H

Max. Flow Rate L/Min: 550

Material: Aluminum

V-80, 3″, M-80, M-80H, 1136, V-100, 4″, M-100, M-100H, 2271

K Series Air Activated Differential Check Valve

K Series Air Activated Differential Check Valves are installed at the outlet of the meter, which is designed to stop the flow of liquid whenever air is present to ensure accurate measurement.

K-80 Check Valve

Technical Specification

Model: K-50

Diameter: 1.5″& 2″

Used for Meter: M-40, M-50, M-50H

Max. Flow Rate L/Min: 550

Material: Aluminum

K-80, 3″, M-80, M-80H, 1136

V-50-LPG Differential Valve

The differential valve is mounted at the outlet of the meter and connected with the vapor eliminator with the function to shut off the liquid flow whenever vapor occurs in the tube system. The valve maintains sufficient pressure to ensure the high-vapor pressure products, such as LPG & Anhydrous Ammonia (NH3) to be always remained in liquid state. The valve is spring loaded and to fail if closed.

V-50-LPG Differential Valve

Technical Specification

Model

Diameter

Used for Meter

Max. Flow Rate L/Min

Material

Working Pressure

V-50-LPG

1.5″& 2″

M-40, M-50, M-50H

760

Aluminum

350PSI

Packing

Packaging

Model

M-40-1

M-50-1

M-80-1

M-100-1

M-150-1

Packaging

1 pc/Wooden Case

Net Weight

23Kgs

26Kgs

40Kgs

70Kgs

130Kgs

Gross Weight

35Kgs

38Kgs

55Kgs

90Kgs

155Kgs

Size

53×48×53cm

53×48×53cm

58×50×61cm

76×64×72cm

80×65×79cm
