Ultrasonic flow meter liquid flowmeter IP67 protection TUF-2000B DN50-700mm TM-1

Description

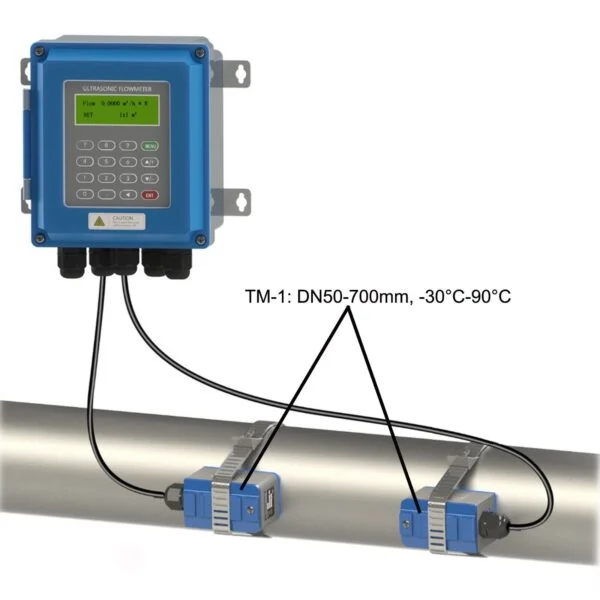

Ultrasonic flow meter wall mounted liquid flowmeter IP67 protection TUF-2000B DN50mm-DN700mm TM-1 Transducer

Multiple Installation Methods:

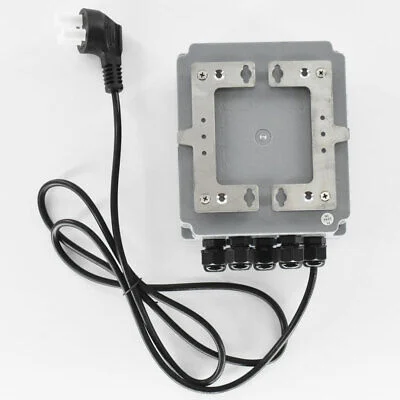

Installation methods:Wall mounting and Two ways of Din-rail mounting

Features:

Working Environment

Main UnitTransducerProtection LevelIP67IP68Humidity≤85%RH

Temperature-20~60℃-30~160℃

Basic Parameters

Accuracy≤1%

Velocity range0~±10m/s, Bi-directional measurementPipe sizeDN32~DN6000mmTemperature-30~160℃Type of liquidSingle liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.Pipe materialSteel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.Signal output1 way 4-20mA output

1 way OCT pulse output

1 way Relay output

Signal input3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.InterfaceRS485, support MODBUSData storageSD card regularly store the pre-set results(optional)Power supplyDC8~36V or AC85~264V

Standard Packing:

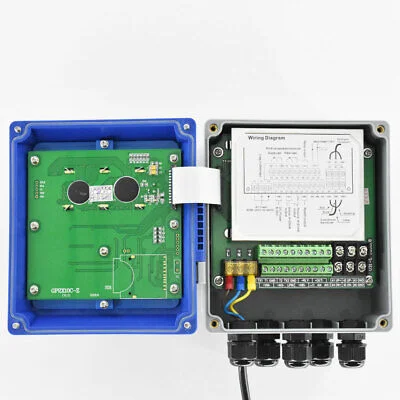

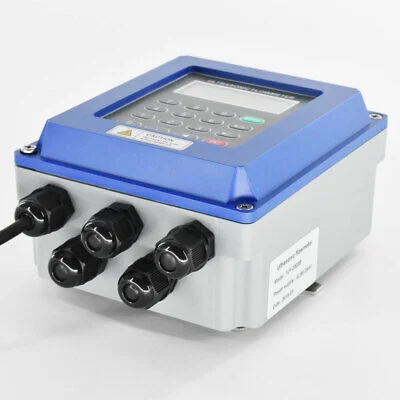

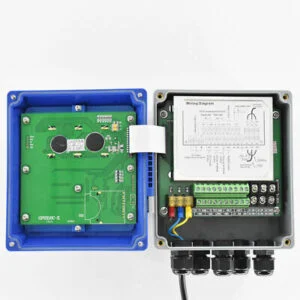

TUF-2000B Host

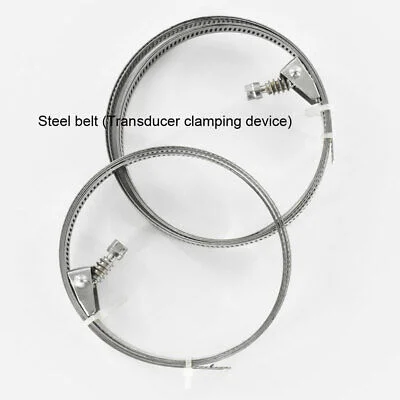

Steel Belt

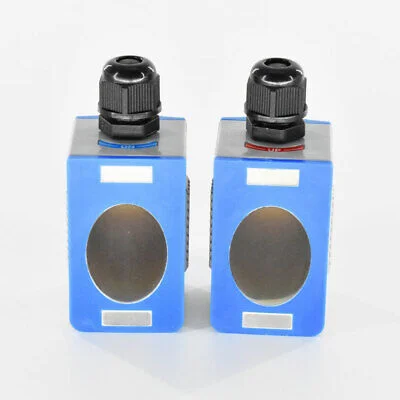

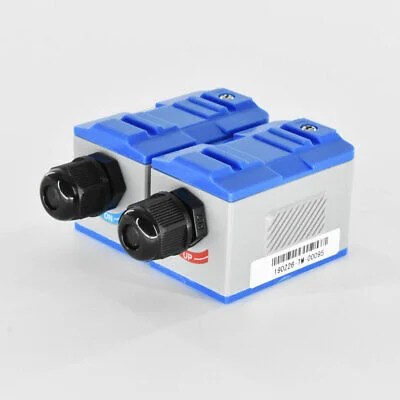

TM-1 Ultrasonic Transducers

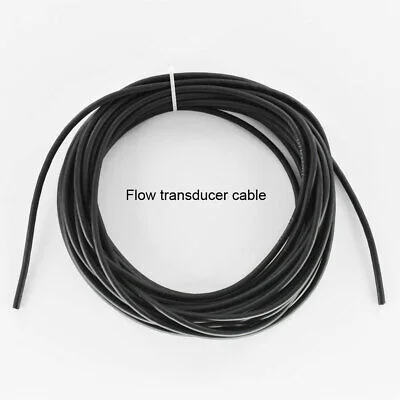

5m*2 Signal Cable

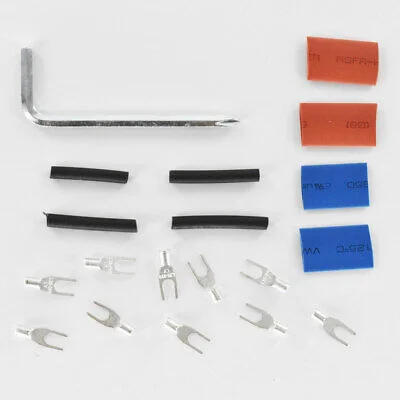

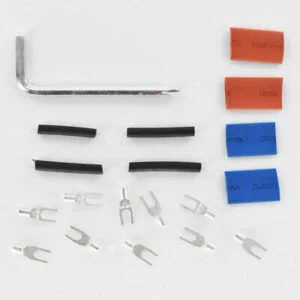

Connection terminal and Screwdriver

User manual

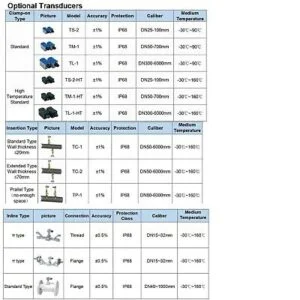

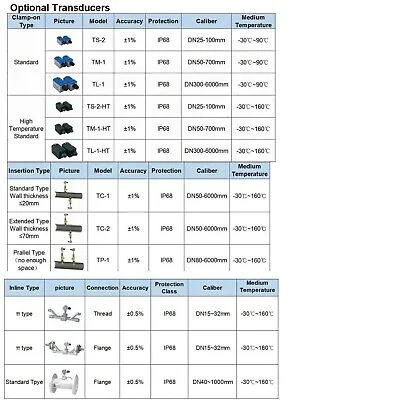

If you need other transducer or extend the signal cable length, please contact us.
